| Reference Picture | |
 |  |

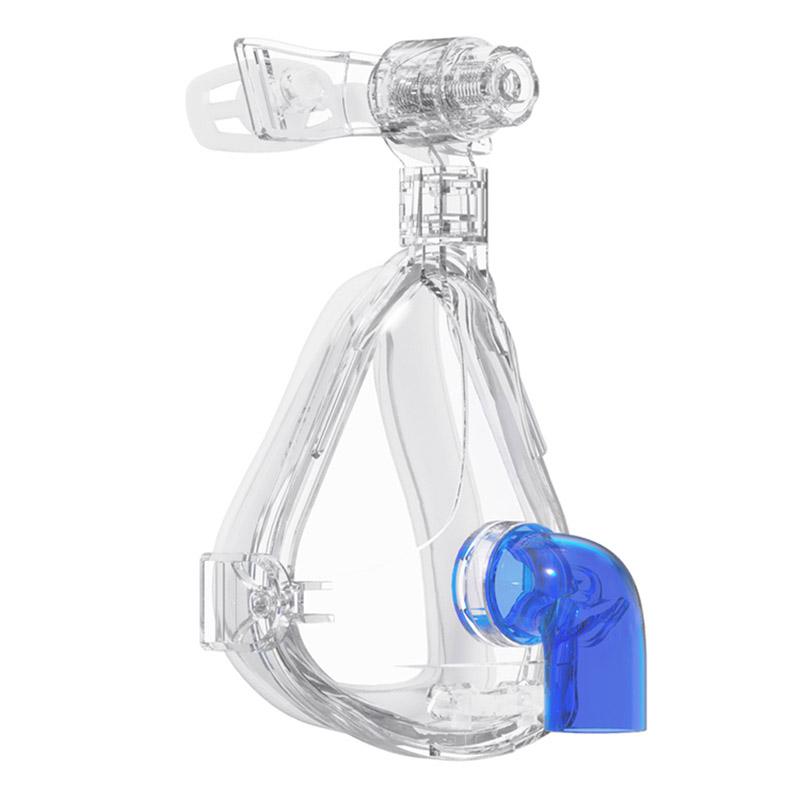

| Vented Type: EasyFit FMI | Non-vented Type: EasyFit FMI-NV |
Features
1.Three size (S,M and L) to fit patient with weight >30kg
2.Air-leaking prevent: 2-layer of cushions made from medical silicon
3.Safe: with Anti-asphyxia valve and anti-blocking holes
4.Comfortable: two directions adjustment to fit any size of face
5.Easy to wear or take-off buckles
Application scope
The nasal mask provides an interface for application of CPAP or bi-level ventilation therapy to patients. It is for single patient use in the home/hospital/institutional environment.
Specification
| Difference | EasyFit FMI | EasyFit FMI-NV |
| Type | Vented, with anti-blocking holes | Non Vented |
| Connector | 1 piece, Grey color male | 2 pieces, Grey colored male type, and Blue colored female type |
| Common | EasyFit FMI/ EasyFit FMI-NV |
| Tube compatible | ??22mm (ISO 5356-1) |
| Resistance | Drop in pressure measured at 50L / min ??1 cmH2O at 100L / min ??2 cmH2O |
| Dead space information | Dead space refers to the internal cavity of the mask elbow at the end of volume. Use medium size cushions, the volume of 270 ml. |
| Pressure range | 4-30cmH2O |
| Open-to-atmosphere pressure | 0.7cmH2O |
| Close-to-atmosphere pressure | 2.5cmH2O |
| Sound | In accordance with ISO 4871 Less than 35dBA |
| Environmental conditions | Operating temperature: + 5 ?? to + 40 ??; Operating humidity, 15-95% relative humidity, non-condensing. Storage and transport temperature: -20 ?? to + 60 ??; Storage and transport humidity: not exceeding 95% RH, non-condensing |
| Cleaning | Warm soapy water |
| Net Weight | Appox.: 0.5 kg |
| Dimensions | S: 175.9mm (height) ?? 110mm (width) ?? 112.5mm (thickness) M: 183.9mm (height) ?? 118mm (width) ?? 114.5mm (thickness) L: 194.9mm (height) ?? 122mm (width) ?? 114.5mm (thickness) |
| Packing list | Vented: Nasal Mask*1, headgear*1,User manual*1 |
| Non-vented: Nasal Mask*1,headgear*1,Female connector (Blue)*1, User manual*1 |
