BIPAP machine can be set IPAP (inspiratory positive airway pressure) and EPAP (Expiratory positive airway pressure). In use, for the user apnea varying degrees, airway pressure set by corresponding professionals for treatment.
It is suitable for clinical and home treatment of sleep apnea-hypopnea syndrome (OSAHS) and respiratory failure diseases.

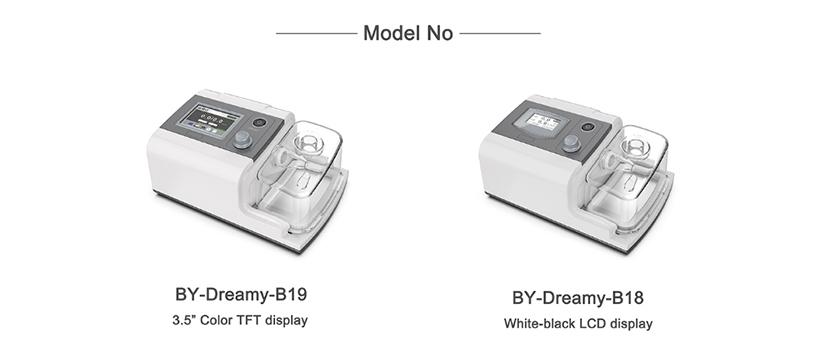

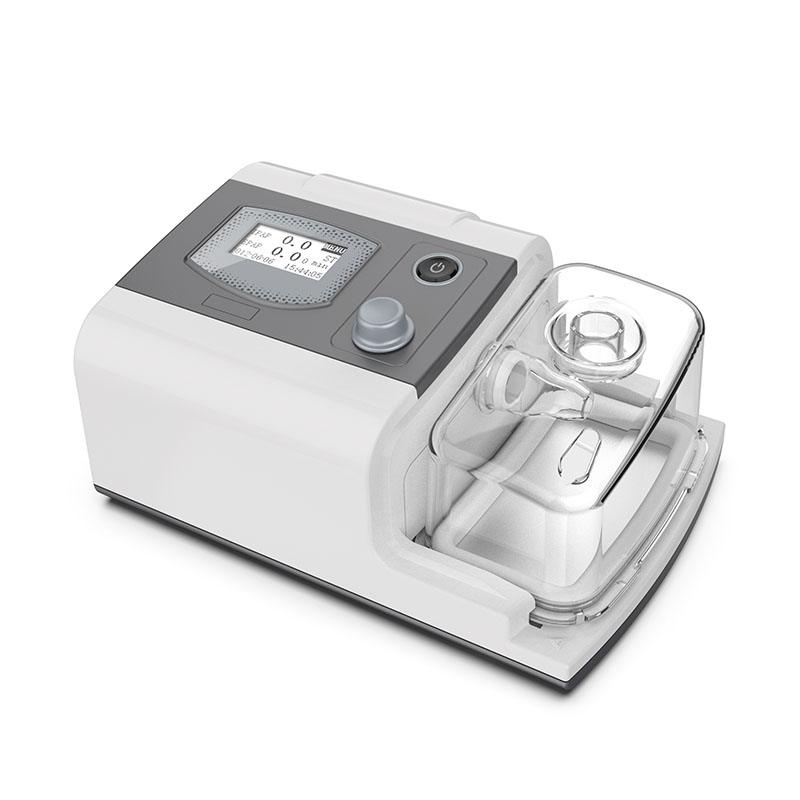

By-Dreamy-B18
Features of BIPAP Machine
1. 128??64 LCD display with easy operation.
2. Interactive operation interface is available. Back-lighting function allow night operation.
3. Fashionable design with fine piano lacquer, convenient for wipe.
4. Respiratory waveform & quality waveform display can achieve real time monitoring of CPAP
5. Ultra silent design & Delay time step up design.
6. The portable machine adopts imported movement technology, capable of constant heating.
7. BIPAP machinery is working to achieve human-computer synchronization.
Notes of BIPAP Machine
1. Not available in bullous lung disease, pneumothorax, severe lack of effective circulating blood volume with shock, coma or with disturbance of consciousness, or don??t cooperate or accept the mask treatment.
2. Not apply to children, or physical, sensory, intellectual can not be used safely and without the aid or user under guardianship.
Parameters of BIPAP Machine
| Model | BY-Dreamy -B18 |
| Display | 128??64 LCD |
| Mode | CPAP, S/T |
| Functions and features | |
| Pressure | 4-20CMH2O |
| Belex (1-3level) | 2-4cmH2O |
| Ramp Duration | 0-60min |
| IPAP | 4-20cmH2O |
| EPAP | 4-20cmH2O |
| Respiration Rate | 4~40BPM |
| Inspiration Time | 0.5~3.0s |
| Inspiration Sensitivity | 1~6 level |
| Expiration Sensitivity 1~6 level | 1~6 level |
| Automatic Leakage Compensation | Yes |
| Automatic Altitude Adjustable | Yes |
| Automatic ON/OFF | Yes |
| Adjustable Constant Temperature Humidification System | Yes |
| Replaceable Water Chamber | Yes |
| USB Download to PC | Yes |
| Sound Pressure Level(10cmH2O) | <30dBA |
| Input Volt.&Freq. | 110-240Vac,50/60Hz |
| Net Weight & Size | 1.8kg, 255??170??112mm(Host+Humidifier) |
BIPAPA
Apply Crowd:
1. Moderate OSAHS patients
2. Chronic obstructive pneumonia
3. Respiratory failure
Taboo:
1. Repeated epistaxis
2. Coma
3. Hemodynamic instability
4. Pneumothorax
5. Pulmonary bulla
6. Cerebrospinal rhinorrhea
Product Accessories
Full Face Mask, Headgear, Tube, Filter, Power Adapter, User Manual & Traveling Bag
![]() | |
![]() | |
![]() | Comfort sleep ??Constant humidifer,makes breath comfortable; ??Apply high quality blower,sound less than 30dB; ?? Auto-on and off,sleep rest-assured; ?? Inteligent compensation,ramp function,improve complia; |
![]() | |
