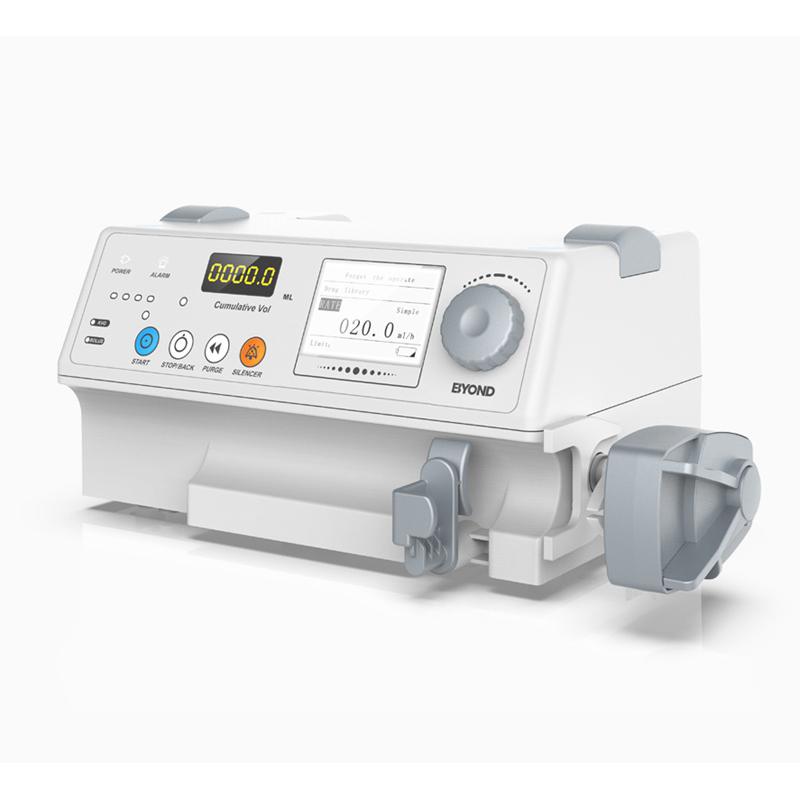

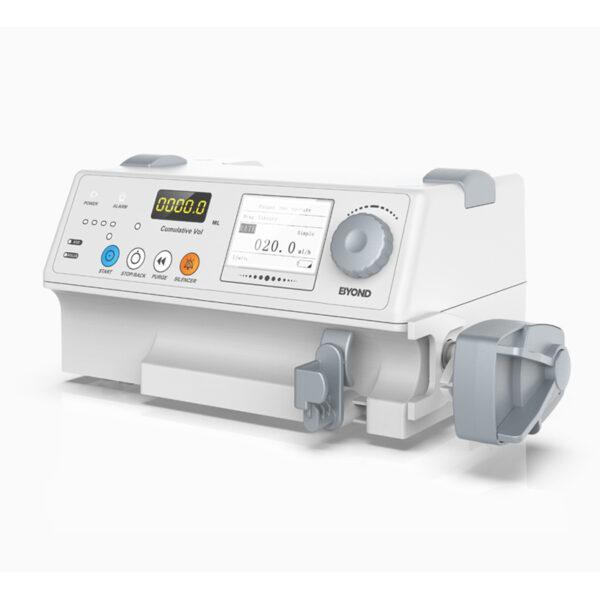

Features of Single Channel Syringe Pump
1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
2. Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.;
3. Compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;
4. Preset solution volume to greatly reduce the workload of nurses;
5. Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;
6. Three levels of occlusion: high, medium and low;
7. Purge and Bolus function;
8. KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is 0.1-5ml/h(0.1ml/h step);
9. Freely Stackable: freely stack one syringe pump onto another to provide multiple solutions, which have a wide range of clinical applications;
10. Power Source: AC100—240V, 50/60Hz; Internal Battery, DC12V car charge;
11. One-key operation makes setup easy and simple;
12. Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;
13. Automatically record the settings of last injection;
14. OEM is available.
Specification of Single Channel Syringe Pump| Unique Human Voice Alarm system | The device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable. |
| Rate: | 50/60ml Syringe: 0.1ml/h ~ 999.9ml/h (0.1ml/h step) 1,000ml/h ~ 1,500ml/h (1ml/h step) 30ml Syringe: 0.1ml/h ~ 900.0ml/h (0.1ml/h step) 20ml Syringe: 0.1ml/h ~ 600.0ml/h (0.1ml/h step) 10ml Syringe: 0.1ml/h ~ 300.0ml/h (0.1ml/h step) |
| Flow Rate Accuracy | Within ±3% (after correct calibration) |
| Mechanical precision | Within ±2% |
| Bolus Rate | 50/60ml Syringe: 1,200ml/h 30 ml Syringe: 720ml/h 20 ml Syringe: 480ml/h 10 ml Syringe: 240ml/h |
| Purge Rate | 50/60ml Syringe: 1,500ml/h 30ml Syringe: 900ml/h 20ml Syringe: 600ml/h 10ml Syringe: 300ml/h |
| Volume Limit | 0.1ml ~ 9999.9ml (0.1ml step) |
| Total Injection Volume | 0.1ml ~ 9999.9ml (0.1ml step) |
| Occlusion of Single Channel Syringe Pump | High: 800mmHg ±200mmHg (106.7kPa±26.7kPa) Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa) Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa ) |
| Alarms | Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc. |
| Power Source | AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup |
| KVO rate | 1ml/h |
| Fuse | F1AL/250/60V, 2pcs inside |
| Power Consumption | 30VA |
| IP Classification | IPX4 |
| Equipment Classification | Class II, internal power supply, Type CF |
| Operating Condition | Ambient temperature: +5℃~ +40℃ |
| Relative humidity | 20 ~ 90% |
| Transport & Storage Condition | Ambient temperature:-30℃~ +55℃ |
| Relative humidity | ≤95% |
| Dimension | 280mm (L) ×210mm(W) ×130mm(H) |
| Weight | 2.2kg (net weight) |
| Easy operation·Brand new appearance provide better experience·Clearly LCD and digital tube dual display·Simple rate mode with one key start, easy to operate |   |
  | Precision more safer·Three occlusion level for option·Intelligent recognition of the 10ml、20ml、30ml、50ml(60ml) syringe, can work with any brand syringe after calibration |
| Intelligent & safe·low noise and less vibration are supported by application of motor driver IC imported from German and motor imported from Japan.· Unique voice, word and light combination alarms, very faster and reliable·Can be stackable to save space |   |
| BYZ-810simple mode;VoI/T mode;VoI/w mode;human voice alarm system | BYZ-810Dsimple mode;Vol/T mode;Vol/w mode human voice alarm system. add injection records, drug library, time setting based on BYZ-810 |
